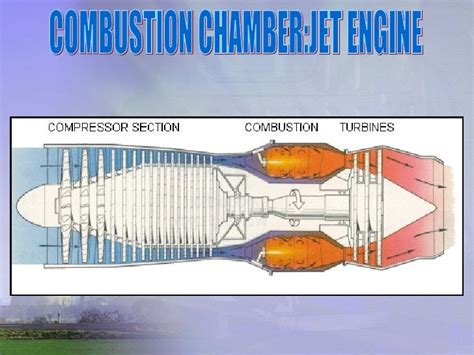

harrier engine combustion chamber Aircraft art, Combustion chamber

Introduction

Jet engines are a crucial aspect of modern aviation. They power the aircraft and make air travel possible. One of the key components of a jet engine is the combustion chamber. In this article, we will take a closer look at the design of jet combustion chambers.

What is a Combustion Chamber?

A combustion chamber is a vital component in a jet engine. It is responsible for the combustion of fuel and air, which produces high-temperature and high-pressure gases that power the engine. The combustion chamber is designed to withstand the high temperatures and pressures generated during the combustion process.

Types of Combustion Chambers

Can Combustion Chamber

The can-type combustion chamber is the most common type of combustion chamber used in jet engines. It consists of a cylindrical chamber with fuel injectors and air inlets at one end and a nozzle at the other end. The fuel and air mixture is ignited in the chamber, and the resulting high-pressure gases are expelled through the nozzle.

Annular Combustion Chamber

The annular combustion chamber is a more recent design that is becoming increasingly popular. It consists of a ring-shaped chamber with fuel injectors and air inlets around the circumference. The fuel and air mixture is ignited in the center of the ring, and the resulting high-pressure gases are expelled through a nozzle at the center of the chamber.

Design Considerations

The design of a combustion chamber is critical to the performance and safety of a jet engine. Several factors need to be considered during the design process, including:

Temperature

The combustion chamber must be able to withstand high temperatures generated during combustion. Materials with high melting points, such as ceramics and nickel-based alloys, are commonly used for this purpose.

Efficiency

The combustion chamber must be designed to maximize fuel efficiency and minimize emissions. This is achieved by optimizing the fuel and air mixture and ensuring complete combustion.

Size and Weight

The combustion chamber must be designed to be as small and lightweight as possible, while still meeting the performance requirements of the engine.

Conclusion

The design of a jet combustion chamber is a critical aspect of jet engine design. It must be able to withstand high temperatures and pressures, while also maximizing efficiency and minimizing emissions. By understanding the design considerations involved in jet combustion chamber design, we can appreciate the complexity and importance of this component in modern aviation.
