Proper Oxygen Acetylene Settings For Welding

Oxy acetylene filler rod labquiz

Introduction

Welding is a process that requires precision and accuracy. One of the most important aspects of welding is setting the correct oxygen acetylene settings. If you are new to welding, this can be a daunting task. In this article, we will discuss the proper oxygen acetylene settings for welding.

The Basics of Oxygen Acetylene Welding

Before we dive into the proper settings, let’s first understand the basics of oxygen acetylene welding. Oxygen acetylene welding is a process that uses two gases to create a flame that melts metal. The two gases are oxygen and acetylene, which are stored in separate tanks.

The Importance of Proper Settings

Setting the right oxygen acetylene settings is crucial for a successful welding process. If the settings are incorrect, you may end up with a poor quality weld, or worse, an unsafe welding environment.

Proper Oxygen Acetylene Settings

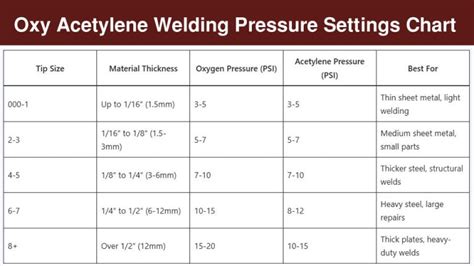

Here are the proper oxygen acetylene settings for welding:

Acetylene Gas Pressure

The acetylene gas pressure should be set between 5 and 10 psi (pounds per square inch). If the pressure is too low, the flame will be weak, and if it’s too high, it can damage the equipment.

Oxygen Gas Pressure

The oxygen gas pressure should be set between 30 and 40 psi. If the pressure is too low, the flame will be weak, and if it’s too high, it can cause an explosion.

Flame Adjustment

The flame adjustment should be set to a neutral flame. This means that the flame should have a blue cone with a light blue outer flame. If the flame is too hot or too cold, it can cause problems with the weld.

Torch Angle

The torch angle should be between 45 and 60 degrees. This angle ensures that the flame is directed at the correct angle for welding.

Welding Speed

The welding speed should be slow and steady. This allows the metal to heat evenly, which results in a better quality weld.

Conclusion

Setting the proper oxygen acetylene settings for welding is essential for a successful welding process. By following the guidelines outlined in this article, you can ensure that your welds are of the highest quality and that your welding environment is safe. Remember to always wear the proper safety gear when welding and to follow all safety guidelines.
